質問40
Refer to the exhibit. An engineer applied the configuration on R1 to prevent network
192.168.1.0/24 from being propagated outside of area 5. After the change, users have reported they are not able to access any of the application servers that were working before.
While checking the routing table of the peer router. The engineer notices R1 stopped propagating any routes outside are 5. Which action must be taken to fix the problem?

質問41
Refer to the exhibit. A network engineer applied configuration on R1 to summarize all ISIS routes, but R2 Is still receiving specific routes from R1. The engineer has confirmed that both routers are configured with the correct summarization configuration, but R1 is not sending the correct summary routes. Which configuration must be applied to router R1 to summarize routes within Level 1?

質問42
シミュレーション
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
– Refer to the Tasks tab to view the tasks for this lab item.
– Refer to the Topology tab to access the device console(s) and perform the tasks.
– Console access is available for all required devices by clicking the device icon or using the tab(s) above the console window.
– All necessary preconfigurations have been applied.
– Do not change the enable password or hostname for any device.
– Save your configurations to NVRAM before moving to the next item.
– Click Next at the bottom of the screen to submit this lab and move to the next question.
– When Next is clicked, the lab closes and cannot be reopened.

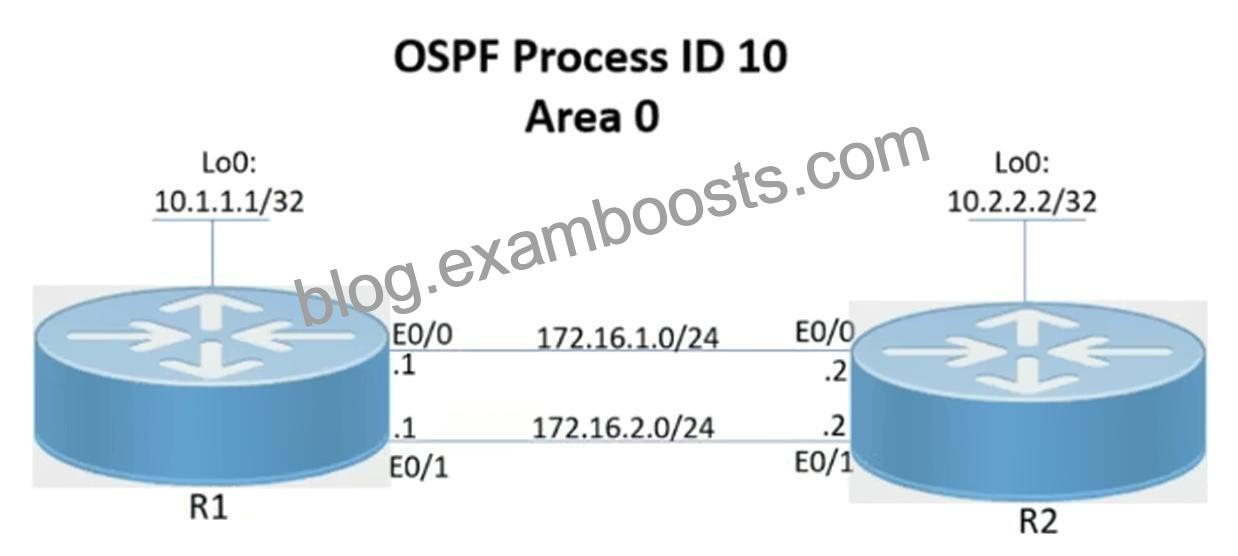

Topology

タスク
Troubleshoot and configure OSPF according to the topology to achieve these goals:
1. R1 and R2 must not have OSPF BR/DR election over their E0/0 interfaces and must not advertise the OSPF host route for the OSPF connected neighbors.
2. E0/0 interfaces on R1 and R2 to be preferred over E0/1 interfaces for OSPF traffic. Only the numerical value of 15 is allowed.
3. Set the OSPF hello interval to 5 and the OSPF dead interval to 10 between R1 and R2 on interface E0/1.

質問43

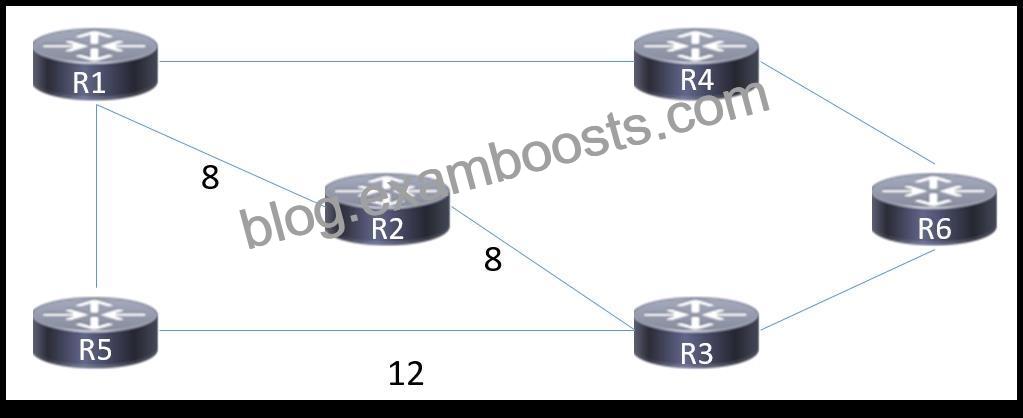

Refer to the exhibit. A network engineer configured routers R1 and R5 to run in IS-IS Level 1 mode and router R6 to run in IS-IS Level 2 mode. All other routers are running as Level 1 / Level
2 routers. An engineer expects traffic from R1 to R6 to pass via R2, but IS-IS routing has calculated the best path via R4. Which action corrects the problem?

質問44

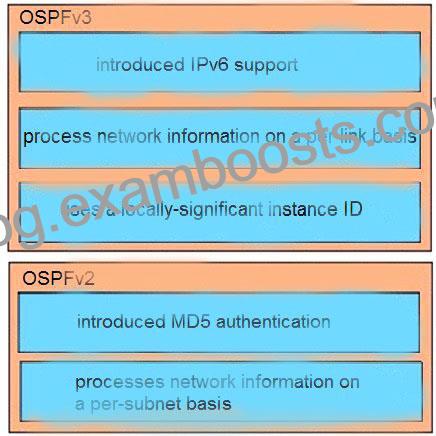

Compare different features between OSPFv2 and OSPFv3. Drag and drop the descriptions of OSPF from the left onto the correct OSPF versions on the right.

質問45
Refer to the exhibit. Router 1 has established an SR-TE tunnel with router 2.
Which statement describes this configuration?

質問46

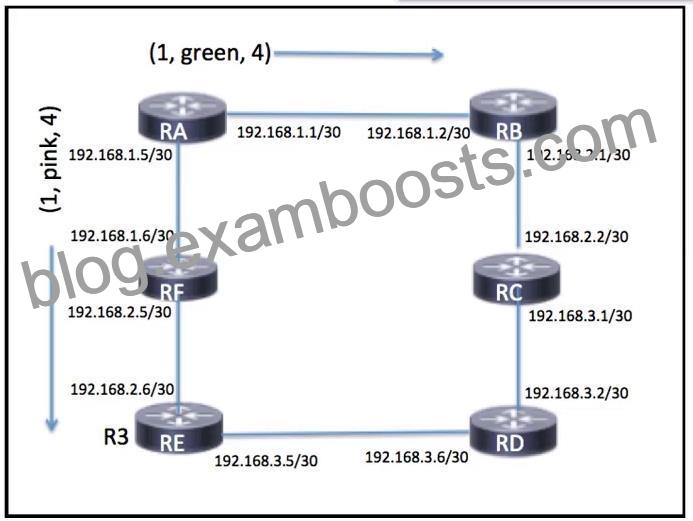

Refer to the exhibit. The green policy is designed with low delay, and the pink policy is designed with low cost. What is the next hop for node A on its way to node D, with the objective of achieving a low delay?

質問47
Refer to the exhibit. Router R1 is configured to advertise outgoing SA messages to routers R2 and R3, but to receive incoming SA messages only from R2. Which additional configuration must an engineer apply to router R1 so it filters all MSDP SA messages from Domain-C?

質問48
Which command is used to enable BIDIR-PIM under global configuration mode for Cisco IOS XE Sofware?

質問49
Refer to the exhibit. After these configurations were applied to routers R1 and R2. the two devices cannot form a neighbor relationship What is the reason tor the problem?

質問50
展示を参照。

Which effect of this configuration is true?

質問51
Drag and Drop Question

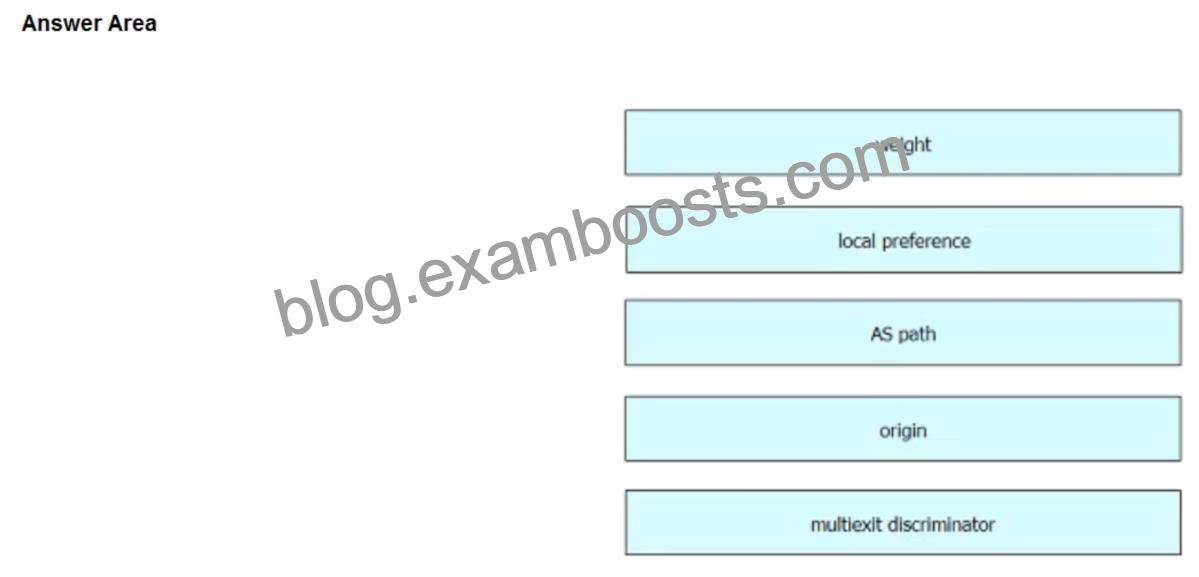

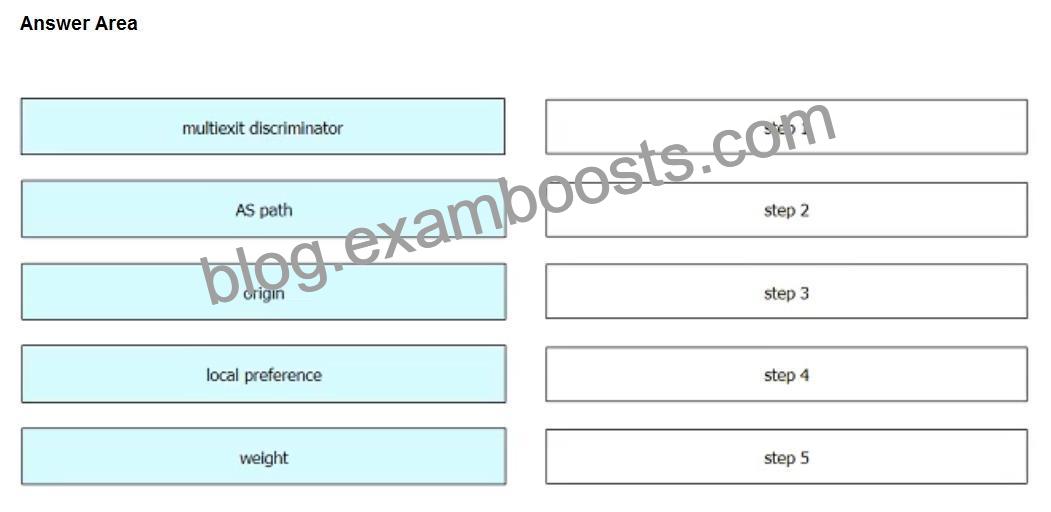

Drag and drop the BGP attributes from the left into the order of route selection preference on the right.

質問52
Refer to the exhibit. An engineer has configured all routers in the environment to run IS-IS Level 1 and Level 2 routing. The engineer wants traffic from R1 to R5 to pass via R2. but IS-IS routing has calculated the best path via R4. Which action corrects the problem?

質問53
展示を参照。

Refer to the exhibit MPLS traffic from the packet core that is connected to router RX (10 10 101) to the radio network that is connected to router RB (10 10 10 6) uses the longer route RB R2 RY RX RX and R2 are configured with a default value of LDP hello and hold intervals The team verified that OSPF neighborship in Area 0 is established between RX and R2 Which action must be taken to choose the shortest path and resolve the issue?

質問54
展示を参照

Which router does R1 install as an alternate next hop when trying to reach R3 if LFA is enabled?

質問55
展示を参照。

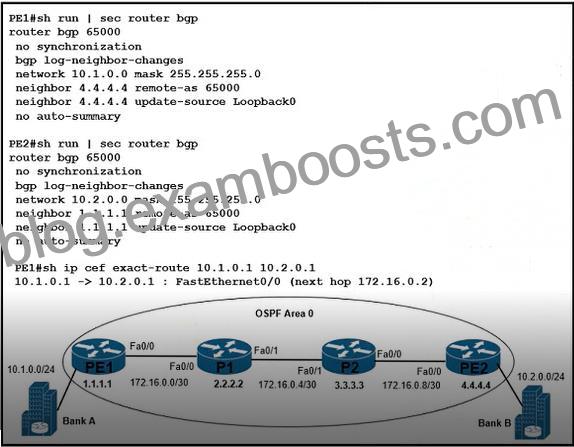

Refer to the exhibit. Network connectivity between bank A and bank B has been lost Users at bank A and bank B are able to successfully reach their directly connected PE routers. All routers in OSPF area 0 are correctly advertising and learning routing updates. Which action resolves the issue?

質問56
While configuring Cisco NSF awareness, a network engineer enters the bgp graceful-restart command after the BGP session is established in a router that runs IOS XE Software. Graceful restart capabilities are not exchanged. Which two actions should be taken? (Choose two.)
