CCNP Enterprise Certification 300-410 Sample Questions Reliable

Prepare for the Actual CCNP Enterprise 300-410 Exam Practice Materials Collection

Cisco 300-410: Implementing Cisco Enterprise Advanced Routing and Services (ENARSI) exam is a certification designed for network professionals who want to develop their skills in implementing advanced routing and services technologies. Implementing Cisco Enterprise Advanced Routing and Services certification is aimed at individuals who have already gained basic knowledge in networking, and are now looking to take their career to the next level by expanding their expertise in the field.

NO.234 Refer to the exhibit. What is the result of applying this configuration?

The router can form BGP neighborships with any other device.

The router cannot form BGP neighborships with any other device.

The router cannot form BGP neighborships with any device that is matched by the access list named
“BGP”.

The router can form BGP neighborships with any device that is matched by the access list named “BGP”.

Section: Layer 3 Technologies

NO.235 An engineer is troubleshooting on the console session of a router and turns on multiple debug commands. The console screen is filled with scrolling debug messages that none of the commands can be verified if entered correctly or display any output. Which action allows the engineer to see entered console commands while still continuing the analysis of the debug messages?

Configure the logging synchronous command

Configure the no logging console debugging command globally

Configure the logging synchronous level all command

Configure the term no mon command globally

설명

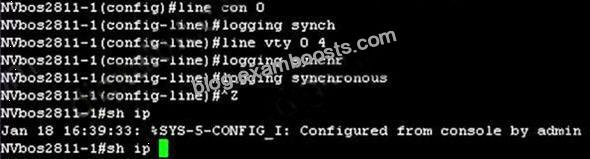

Let’s see how the “logging synchronous” command affect the typing command:
Without this command, a message may pop up and you may not know what you typed if that message is too long. When trying to erase (backspace) your command, you realize you are erasing the message instead.

With this command enabled, when a message pops up you will be put to a new line with your typing command which is very

NO.236 전시회를 참조하세요.

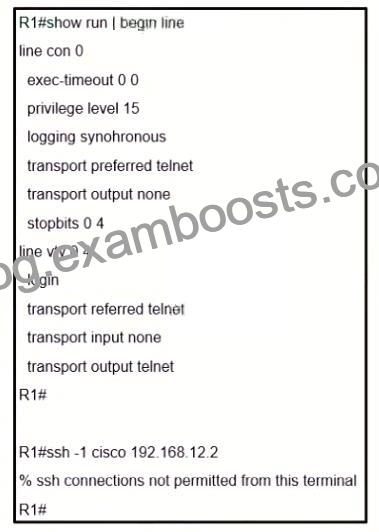

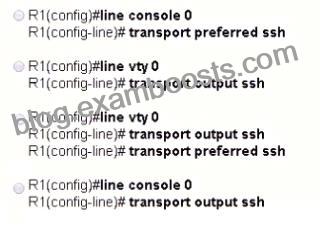

An engineer receives this error message when trying to access another router m-band from the serial interface connected to the console of R1. Which configuration is needed on R1 to resolve this issue?

옵션 A

옵션 B

옵션 C

옵션 D

https://community.cisco.com/t5/other-network-architecture/out-of-band-router-access/td-p/333295

NO.237 전시회를 참조하세요.

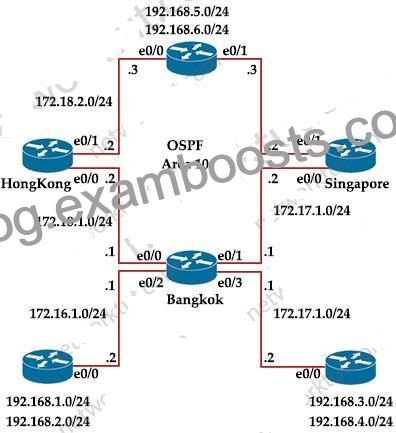

Bangkok is using ECMP to reach to the 192.168.5.0/24 network. The administrator must configure Bangkok in such a way that Telnet traffic from 192.168.3.0/24 and192.168.4.0/24 networks uses the HongKong router as the preferred router. Which set of configurations accomplishes this task?

access-list 101 permit tcp 192.168.3.0 0.0.0.255 192.168.5.0 0.0.0.255 access-list 101 permit tcp 192.168.4.0 0.0.0.255 192.168.5.0 0.0.0.255
!
route-map PBR1 permit 10
match ip address 101
set ip next-hop 172.18.1.2
interface Ethernet0/3
ip policy route-map PBR1

access-list 101 permit tcp 192.168.3.0 0.0.0.255 192.168.5.0 0.0.0.255 eq 23 access-list 101 permit tcp 192.168.4.0 0.0.0.255 192.168.5.0 0.0.0.255 eq 23
!
route-map PBR1 permit 10
match ip address 101
set ip next-hop 172.18.1.2
interface Ethernet0/1
ip policy route-map PBR1

We need to use Policy Based Routing (PBR) here on Bangkok router to match the traffic from 192.168.3.0/24 & 192.168.4.0/24 and “set ip next-hop” to HongKong router(172.18.1.2 in this case).
Note: Please notice that we have to apply the PBR on incoming interface e0/3 to receive traffic from 192.168.3.0/24 and 192.168.4.0/24.

NO.238 전시회를 참조하세요.
A network administrator configured an IPv6 access list to allow TCP return frame only, but it is not working as expected. Which changes resolve this issue?

옵션 A

옵션 B

옵션 C

옵션 D

설명
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3750/software/release/122_55_se/configuration/ e/scg3750/swv6acl.html

NO.239 전시회를 참조하세요.

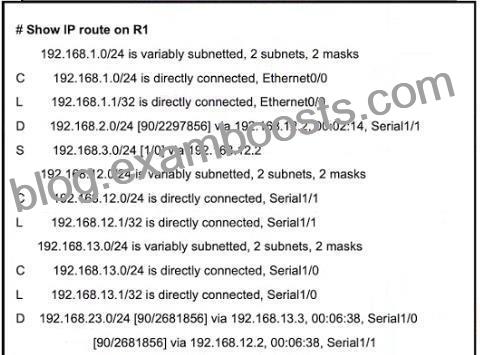

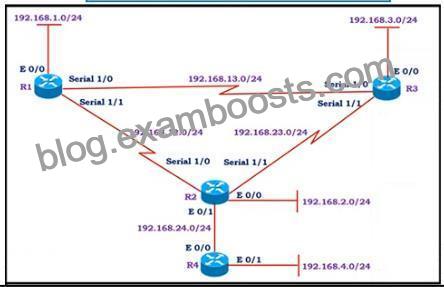

All the serial between R1, R2, and R3 have the Same bandwidth. User on the 192.168.1.0/24 network report slow response times while they access resource on network 192.168.3.0/24. When a traceroute is run on the path. It shows that the packet is getting forwarded via R2 to R3 although the link between R1 and R3 is still up. What must the network administrator to fix the slowness?

Change the Administrative Distance of EIGRP to 5.

Add a static route on R1 using the next hop of R3.

Remove the static route on R1.

Redistribute theR1 route to EIGRP

NO.240 Drag and drop the operations from the left onto the locations where the operations are performed on the right.

NO.241 전시회를 참조하세요.

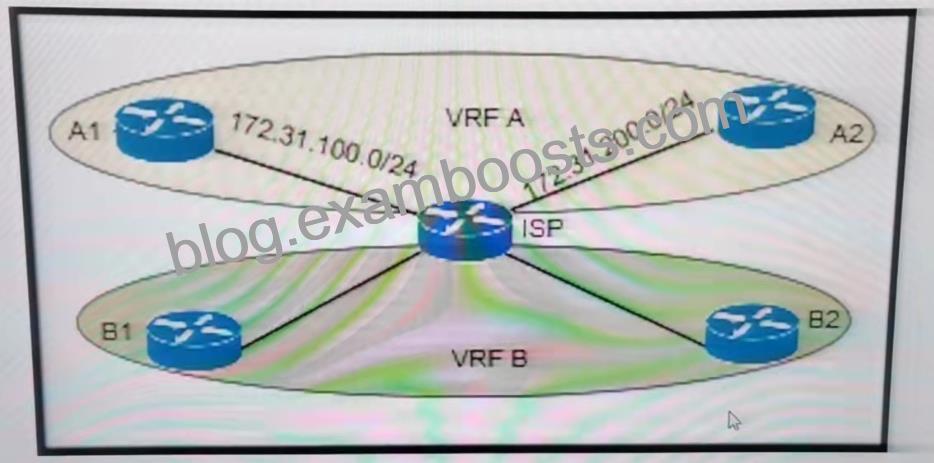

The ISP router is fully configured for customer A and customer B using the VRF-Lite feature. What is the minimum configuration required for customer A to communicate between routers A1 and A2?

A1
interface fa0/0
description To->ISP
ip add 172.31.100.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.100.1 0.0.0.255 area 0
A2
interface fa0/0
description To->ISP
ip add 172.31.200.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.200.1 0.0.0.255 area 0

A1
interface fa0/0
description To->ISP
ip vrf forwarding A
ip add 172.31.100.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.100.1 0.0.0.255 area 0
A2
interface fa0/0
description To->ISP
ip vrf forwarding A
ip add 172.31.200.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.200.1 0.0.0.255 area 0

A1
interface fa0/0
description To->ISP
ip add 172.31.200.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.200.1 0.0.0.255 area 0
A2
interface fa0/0
description To->ISP
ip add 172.31.100.1 255.255.255.0
no shut
!
router ospf 100
net 172.31.100.1 0.0.0.255 area 0

A1
interface fa0/0
description To->ISP
ip vrf forwarding A
ip add 172.31.100.1 255.255.255.0
no shut
!
router ospf 100 vrf A
net 172.31.200.1 0.0.0.255 area 0
A2
interface fa0/0
description To->ISP
ip vrf forwarding A
ip add 172.31.100.1 255.255.255.0
no shut
!
router ospf 100 vrf A
net 172.31.200.1 0.0.0.255 area 0

설명
A1 and A2 routers do not know they belong to VRFA.
The two interfaces of ISP (which are connected to A1 & A2) should be configured like this (we only show the configure of one interface):
ISP router:
interface g0/0
description ISP->To_CustomerA
ip vrf forwarding A
ip address 172.31.100.2 255.255.255.0
router ospf 100 vrf A
network 172.31.200.2 0.0.0.255 area 0

NO.242 Refer to Exhibit.

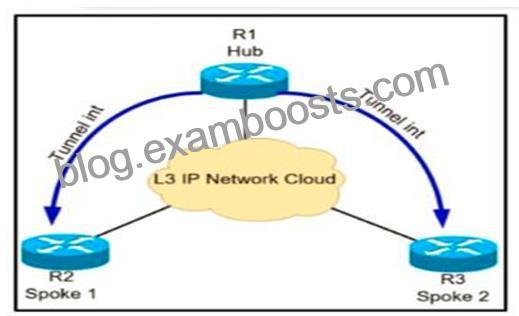

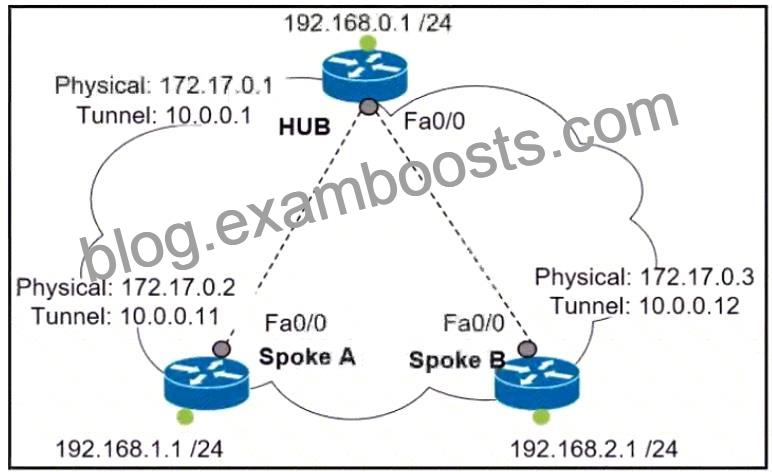

A network administrator has successfully configured DMVPN topology between a hub and two spoke routers. Which two configuration commands should establish direct communications between spoke 1 and spoke 2 without going through the hub? (Choose two).

At the hub router, configure the ip nhrp shortcut command.

At the spoke routers, configure the ip nhrp spoke-tunnel command.

At the hub router, configure ip nhrp redirect the command

At the spoke routers, configure the ip nhrp shortcut command.

At the hub router, configure tne Ip nhrp spoke-tunnel command

NO.243 전시회를 참조하세요.

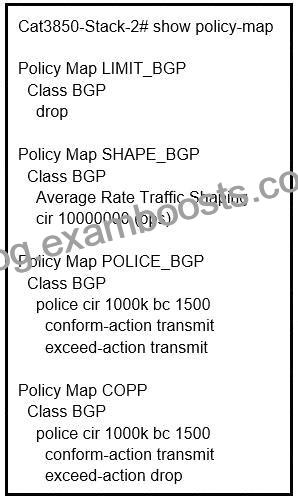

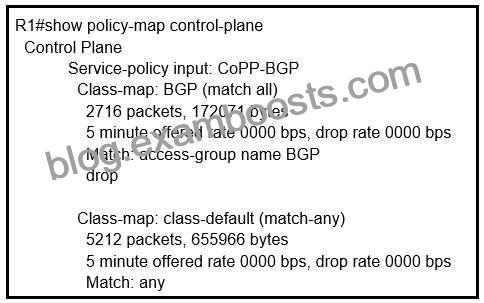

Which control plane policy limits BGP traffic that is destined to the CPU to 1 Mbps and ignores BGP traffic that is sent at higher rate?

policy-map SHAPE_BGP

policy-map LIMIT_BGP

policy-map POLICE_BGP

policy-map COPP

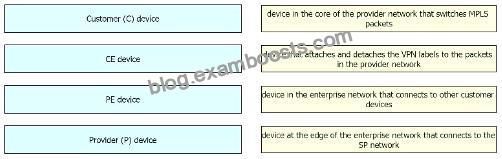

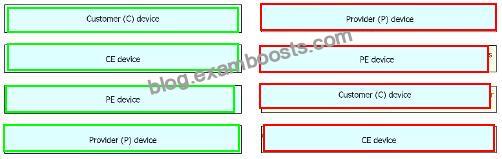

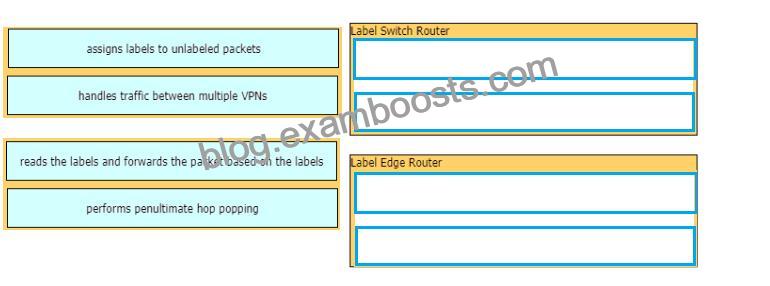

NO.244 Drag and drop the MPLS VPN device types from me left onto the definitions on the right.

NO.245 전시회를 참조하세요.

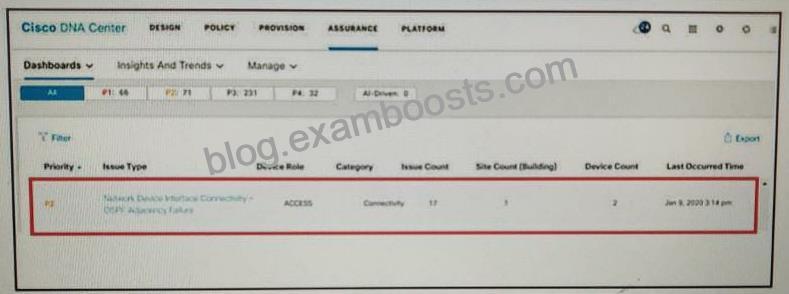

A network administrator is using the DNA Assurance Dashboard panel to troubleshoot an OSPF adjacency that failed between Edge_NYC interface GigabitEthernet1/3 with Neighbor Edge_SNJ. The administrator observes that the neighborship is stuck in exstart state. How does the administrator fix this issue?

Configure to match the OSPF interface speed and duplex settings on both routers.

Configure to match the OSPF interface MTU settings on both routers.

Configure to match the OSPF interface unique IP address and subnet mask on both routers.

Configure to match the OSPF interface network types on both routers.

설명
https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/13684-12.html

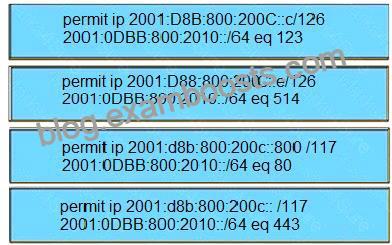

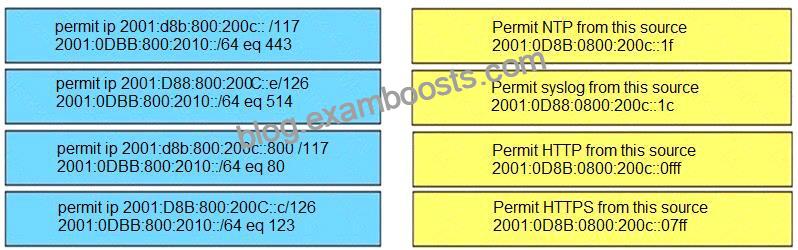

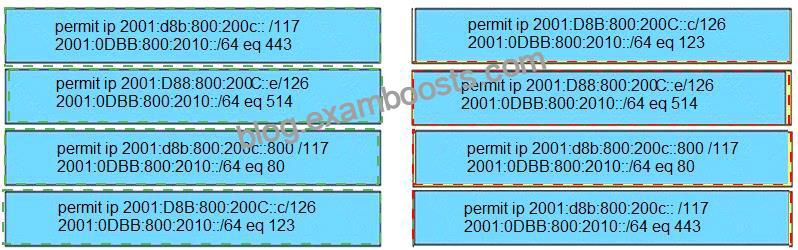

NO.246 Drag and drop the addresses from the left onto the correct IPv6 filter purposes on the right.

설명

HTTP and HTTPs run on TCP port 80 and 443, respectively and we have to remember them.
Syslog runs on UDP port 514 while NTP runs on UDP port 123 so if we remember them we can find out the matching answers easily. But maybe there is some typos in this question as 2001:d88:800:200c::c/126 only ranges from 2001:d88:800:200c:0:0:0:c to 2001:d88:800:200c:0:0:0:f (4 hosts in total). It does not cover host
2001:0D88:0800:200c::1f. Same for 2001:D88:800:200c::e/126, which also ranges from
2001:d88:800:200c:0:0:0:c to 2001:d88:800:200c:0:0:0:f and does not cover host 2001:0D88:0800:200c::1c.

NO.247 전시회를 참조하세요.

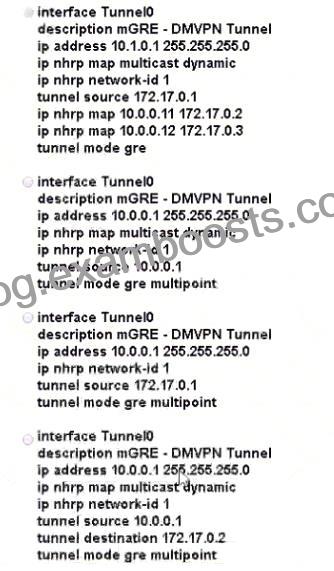

Which interface configuration must be configured on the HUB router to enable MVPN with mGRE mode?

옵션 A

옵션 B

옵션 C

옵션 D

설명
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_dmvpn/configuration/15-mt/sec-conn-dmvpn-15-m

NO.248 What does IPv6 Source Guard utilize to determine if IPv6 source addresses should be forwarded?

ACE

ACLS

DHCP

Binding Table

NO.249 What does IPv6 Source Guard utilize to determine if IPv6 source addresses should be forwarded?

ACE

ACLS

DHCP

Binding Table

NO.250 Refer to the exhibit. A network administrator configured an IPv6 access list to allow TCP return traffic only, but it is not working as expected. Which changes resolve this issue?

ipv6 access-list inbound
permit tcp any any syn
deny ipv6 any any log
!
interface gi0/0
ipv6 traffic-filter inbound out

ipv6 access-list inbound
permit tcp any any syn
deny ipv6 any any log
!
interface gi0/0
ipv6 traffic-filter inbound in

ipv6 access-list inbound
permit tcp any any established
deny ipv6 any any log
!
interface gi0/0
ipv6 traffic-filter inbound in

ipv6 access-list inbound
permit tcp any any established
deny ipv6 any any log
!
interface gi0/0
ipv6 traffic-filter inbound out

NO.251 전시회를 참조하세요.

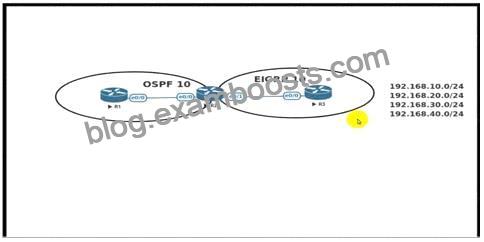

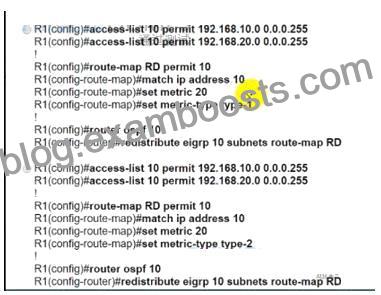

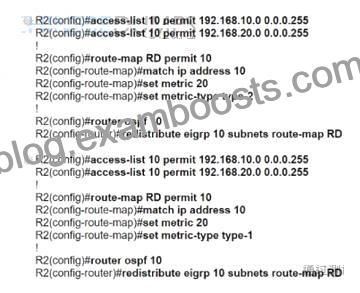

An engineer must redistribute networks 192.168.10.0/24 and 192.168.20.0/24 into OSPF from EIGRP. where the metric must be added when traversing through multiple hops to start an external route of 20 The engineer notices that the external metric is fixed and does not add at each hop. Which configuration resolves the issue?
